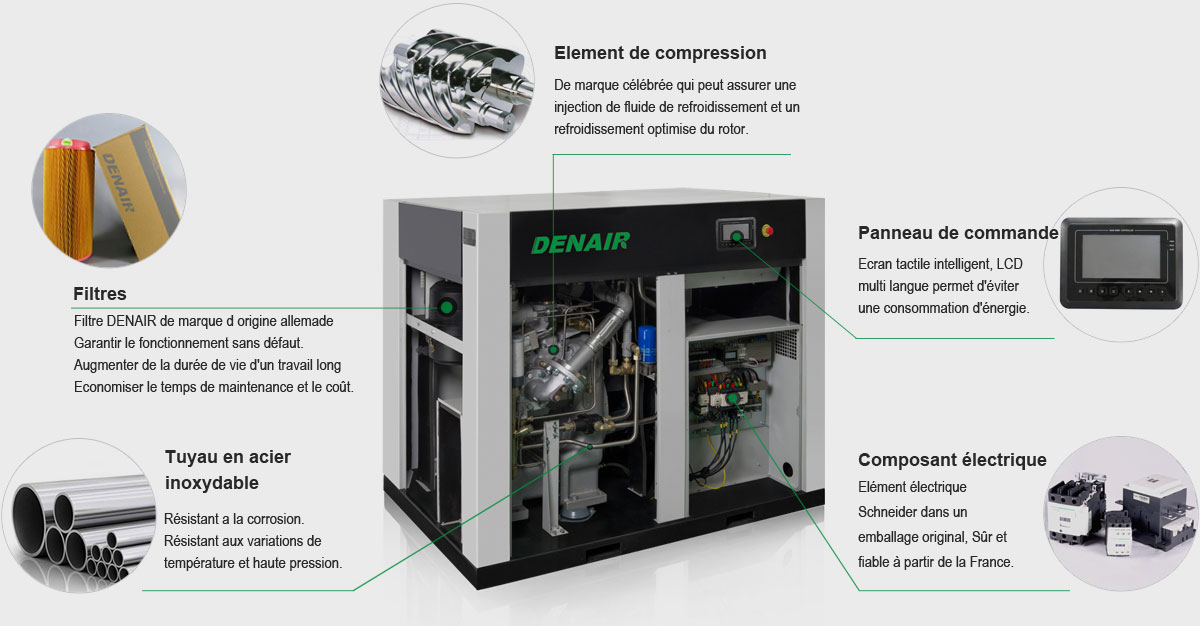

| Pression de service | 2.5, 3.5, 7-10 37, 51, 102-145 |
[bar] [psig] |
| Débit d'air | 194-3037
5.51-86.01 |
[cfm]
[m3/min] |
| Puissance fonctionnement | 45-500 60-670 |
[kw] [hp] |
| Pression de service | 2.5, 3.5, 7-10 37, 51, 102-145 |
[bar] [psig] |
| Débit d'air | 194-3037
5.51-86.01 |
[cfm]
[m3/min] |
| Puissance fonctionnement | 45-500 60-670 |
[kw] [hp] |
| Modèle |
Pression de travail maximale |
Capacité(FAD)* | Puissance du moteur |
Méthode de réfroidirssement |
Niveau de bruit** | Dimensions(mm) | Poids |
Diamètre du tuyau de sortie |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 Hz | 60 Hz | ||||||||||||||
| bar(g) | psig | m³/min | cfm | m³/min | cfm | kW | hp | dB(A) | L | W | H | kG | |||
| DWW-45 | 7.0 | 102 | 7.07 | 250 | 7.16 | 253 | 45 | 60 |
Méthode de réfroidirssement |
80 | 2500 | 1600 | 2080 | 2090 | R1-1/2" |
| 8.0 | 116 | 7.03 | 248 | 6.48 | 229 | 45 | 60 | 80 | 2500 | 1600 | 2080 | 2090 | R1-1/2" | ||
| 10.0 | 145 | 5.51 | 194 | 5.37 | 189 | 45 | 60 | 80 | 2500 | 1600 | 2080 | 2090 | R1-1/2" | ||
| DWW-55 | 7.0 | 102 | 9.37 | 331 | 8.87 | 313 | 55 | 75 | 80 | 2500 | 1600 | 2080 | 2600 | R1-1/2" | |
| 8.0 | 116 | 9.34 | 330 | 8.25 | 291 | 55 | 75 | 80 | 2500 | 1600 | 2080 | 2600 | R1-1/2" | ||
| 10.0 | 145 | 8.11 | 286 | 7.10 | 251 | 55 | 75 | 80 | 2500 | 1600 | 2080 | 2600 | R1-1/2" | ||
| DWW-75 | 7.0 | 102 | 12.72 | 449 | 12.60 | 445 | 75 | 100 | 82 | 2500 | 1600 | 2080 | 2800 | DN50 | |
| 8.0 | 116 | 12.69 | 448 | 12.34 | 436 | 75 | 100 | 82 | 2500 | 1600 | 2080 | 2800 | DN50 | ||
| 10.0 | 145 | 11.58 | 409 | 10.43 | 368 | 75 | 100 | 82 | 2500 | 1600 | 2080 | 2800 | DN50 | ||
| DWW-75W | 7.0 | 102 | 12.72 | 449 | 12.60 | 445 | 75 | 100 | 82 | 2300 | 1600 | 1790 | 2850 | DN50 | |
| 8.0 | 116 | 12.69 | 448 | 12.34 | 436 | 75 | 100 | 82 | 2300 | 1600 | 1790 | 2850 | DN50 | ||
| 10.0 | 145 | 11.58 | 409 | 10.43 | 368 | 75 | 100 | 82 | 2300 | 1600 | 1790 | 2850 | DN50 | ||
| DWW-90 | 7.0 | 102 | 13.66 | 482 | 14.62 | 516 | 90 | 120 | 82 | 2500 | 1600 | 2080 | 3000 | DN50 | |
| 8.0 | 116 | 13.64 | 482 | 14.60 | 515 | 90 | 120 | 82 | 2500 | 1600 | 2080 | 3000 | DN50 | ||
| 10.0 | 145 | 12.64 | 446 | 12.86 | 454 | 90 | 120 | 82 | 2500 | 1600 | 2080 | 3000 | DN50 | ||
| DWW-90W | 7.0 | 102 | 13.66 | 482 | 14.62 | 516 | 90 | 120 | 82 | 2300 | 1600 | 1790 | 2850 | DN50 | |
| 8.0 | 116 | 13.64 | 482 | 14.60 | 515 | 90 | 120 | 82 | 2300 | 1600 | 1790 | 2850 | DN50 | ||
| 10.0 | 145 | 12.64 | 446 | 12.86 | 454 | 90 | 120 | 82 | 2300 | 1600 | 1790 | 2850 | DN50 | ||
| DWW-110 | 7.0 | 102 | 19.16 | 676 | 17.50 | 618 | 110 | 150 | 85 | 2800 | 1800 | 1860 | 3300 | DN65 | |
| 8.0 | 116 | 19.13 | 675 | 17.47 | 617 | 110 | 150 | 85 | 2800 | 1800 | 1860 | 3300 | DN65 | ||
| 10.0 | 145 | 16.72 | 590 | 15.41 | 544 | 110 | 150 | 85 | 2800 | 1800 | 1860 | 3300 | DN65 | ||
| DWW-110W | 7.0 | 102 | 19.16 | 676 | 17.50 | 618 | 110 | 150 | 85 | 2800 | 1800 | 1860 | 3300 | DN65 | |
| 8.0 | 116 | 19.13 | 675 | 17.47 | 617 | 110 | 150 | 85 | 2800 | 1800 | 1860 | 3300 | DN65 | ||
| 10.0 | 145 | 16.72 | 590 | 15.41 | 544 | 110 | 150 | 85 | 2800 | 1800 | 1860 | 3300 | DN65 | ||
| DWW-132 | 7.0 | 102 | 22.63 | 799 | 23.29 | 822 | 132 | 175 | 85 | 2800 | 1800 | 1860 | 3450 | DN65 | |
| 8.0 | 116 | 22.60 | 798 | 23.27 | 822 | 132 | 175 | 85 | 2800 | 1800 | 1860 | 3450 | DN65 | ||
| 10.0 | 145 | 20.28 | 716 | 20.46 | 723 | 132 | 175 | 85 | 2800 | 1800 | 1860 | 3450 | DN65 | ||
| DWW-132W | 7.0 | 102 | 22.63 | 799 | 23.29 | 822 | 132 | 175 | 85 | 2800 | 1800 | 1860 | 3450 | DN65 | |
| 8.0 | 116 | 22.60 | 798 | 23.27 | 822 | 132 | 175 | 85 | 2800 | 1800 | 1860 | 3450 | DN65 | ||
| 10.0 | 145 | 20.28 | 716 | 20.46 | 723 | 132 | 175 | 85 | 2800 | 1800 | 1860 | 3450 | DN65 | ||
| DWW-160 | 7.0 | 102 | 27.40 | 967 | 27.28 | 963 | 160 | 215 | 85 | 2800 | 1800 | 1860 | 3550 | DN65 | |
| 8.0 | 116 | 27.38 | 967 | 27.26 | 962 | 160 | 215 | 85 | 2800 | 1800 | 1860 | 3550 | DN65 | ||
| 10.0 | 145 | 23.98 | 847 | 26.38 | 931 | 160 | 215 | 85 | 2800 | 1800 | 1860 | 3550 | DN65 | ||
| DWW-160W | 7.0 | 102 | 27.40 | 967 | 27.28 | 963 | 160 | 215 | 85 | 2800 | 1800 | 1860 | 3550 | DN65 | |
| 8.0 | 116 | 27.38 | 967 | 27.26 | 962 | 160 | 215 | 85 | 2800 | 1800 | 1860 | 3550 | DN65 | ||
| 10.0 | 145 | 23.98 | 847 | 26.38 | 931 | 160 | 215 | 85 | 2800 | 1800 | 1860 | 3550 | DN65 | ||
| DWW-185 | 7.0 | 102 | 30.37 | 1072 | 31.20 | 1102 | 185 | 250 | 85 | 2800 | 1800 | 1860 | 3950 | DN65 | |
| 8.0 | 116 | 30.34 | 1071 | 31.04 | 1096 | 185 | 250 | 85 | 2800 | 1800 | 1860 | 3950 | DN65 | ||
| 10.0 | 145 | 27.34 | 965 | 29.16 | 1030 | 185 | 250 | 85 | 2800 | 1800 | 1860 | 3950 | DN65 | ||
| DWW-185W | 7.0 | 102 | 30.37 | 1072 | 31.20 | 1102 | 185 | 250 | 85 | 2800 | 1800 | 1860 | 3950 | DN65 | |
| 8.0 | 116 | 30.34 | 1071 | 31.04 | 1096 | 185 | 250 | 85 | 2800 | 1800 | 1860 | 3950 | DN65 | ||
| 10.0 | 145 | 27.34 | 965 | 29.16 | 1030 | 185 | 250 | 85 | 2800 | 1800 | 1860 | 3950 | DN65 | ||
| DWW-200W | 7.0 | 102 | 34.17 | 1206 | 34.82 | 1229 | 200 | 270 | 88 | 3100 | 1900 | 2200 | 4500 | DN100 | |
| 8.0 | 116 | 34.14 | 1205 | 34.78 | 1228 | 200 | 270 | 88 | 3100 | 1900 | 2200 | 4500 | DN100 | ||
| 10.0 | 145 | 30.55 | 1079 | 28.42 | 1004 | 200 | 270 | 88 | 3100 | 1900 | 2200 | 4500 | DN100 | ||
| DWW-220W | 7.0 | 102 | 36.71 | 1296 | 37.35 | 1319 | 220 | 300 | 88 | 3100 | 1900 | 2200 | 5000 | DN100 | |
| 8.0 | 116 | 36.66 | 1295 | 37.30 | 1317 | 220 | 300 | 88 | 3100 | 1900 | 2200 | 5000 | DN100 | ||
| 10.0 | 145 | 34.03 | 1202 | 31.30 | 1105 | 220 | 300 | 88 | 3100 | 1900 | 2200 | 5000 | DN100 | ||
| DWW-250W | 7.0 | 102 | 43.71 | 1543 | 44.27 | 1563 | 250 | 350 | 90 | 3100 | 1900 | 2200 | 5200 | DN100 | |
| 8.0 | 116 | 43.66 | 1542 | 44.24 | 1562 | 250 | 350 | 90 | 3100 | 1900 | 2200 | 5200 | DN100 | ||
| 10.0 | 145 | 39.16 | 1383 | 37.20 | 1314 | 250 | 350 | 90 | 3100 | 1900 | 2200 | 5200 | DN100 | ||
| DWW-280W | 7.0 | 102 | 47.65 | 1683 | 47.25 | 1668 | 280 | 375 | 92 | 3400 | 2200 | 2200 | 6400 | DN100 | |
| 8.0 | 116 | 47.61 | 1681 | 47.21 | 1667 | 280 | 375 | 92 | 3400 | 2200 | 2200 | 6400 | DN100 | ||
| 10.0 | 145 | 43.58 | 1539 | 41.23 | 1456 | 280 | 375 | 92 | 3400 | 2200 | 2200 | 6400 | DN100 | ||
| DWW-315W | 7.0 | 102 | 52.44 | 1852 | 52.30 | 1847 | 315 | 425 | 92 | 3400 | 2200 | 2200 | 6700 | DN100 | |
| 8.0 | 116 | 52.40 | 1850 | 52.27 | 1846 | 315 | 425 | 92 | 3400 | 2200 | 2200 | 6700 | DN100 | ||
| 10.0 | 145 | 47.53 | 1678 | 46.60 | 1645 | 315 | 425 | 92 | 3400 | 2200 | 2200 | 6700 | DN100 | ||
| DWW-355W | 7.0 | 102 | 56.96 | 2011 | 56.84 | 2007 | 355 | 475 | 92 | 4060 | 2000 | 2500 | 6800 | DN125 | |
| 8.0 | 116 | 56.86 | 2008 | 56.74 | 2003 | 355 | 475 | 92 | 4060 | 2000 | 2500 | 6800 | DN125 | ||
| 10.0 | 145 | 49.98 | 1765 | 50.32 | 1777 | 355 | 475 | 92 | 4060 | 2000 | 2500 | 6800 | DN125 | ||
| DWW-400W | 7.0 | 102 | 67.36 | 2378 | 69.55 | 2456 | 400 | 535 | 92 | 4060 | 2000 | 2500 | 7200 | DN125 | |
| 8.0 | 116 | 67.27 | 2375 | 69.45 | 2452 | 400 | 535 | 92 | 4060 | 2000 | 2500 | 7200 | DN125 | ||
| 10.0 | 145 | 56.65 | 2000 | 56.55 | 1997 | 400 | 535 | 92 | 4060 | 2000 | 2500 | 7200 | DN125 | ||
| DWW-450W | 7.0 | 102 | 78.07 | 2757 | 81.66 | 2883 | 450 | 600 | 92 | 4060 | 2000 | 2500 | 9000 | DN125 | |
| 8.0 | 116 | 77.98 | 2753 | N/A | N/A | 450 | 600 | 92 | 4060 | 2000 | 2500 | 9000 | DN125 | ||
| 10.0 | 145 | 67.1 | 2369 | 69.29 | 2447 | 450 | 600 | 92 | 4060 | 2000 | 2500 | 9000 | DN125 | ||
| DWW-500W | 7.0 | 102 | 86.01 | 3037 | N/A | N/A | 500 | 670 | 92 | 4060 | 2000 | 2500 | 9900 | DN125 | |
| 8.0 | 116 | 85.92 | 3034 | 81.58 | 2881 | 500 | 670 | 92 | 4060 | 2000 | 2500 | 9900 | DN125 | ||
| 10.0 | 145 | 77.82 | 2748 | N/A | N/A | 500 | 670 | 92 | 4060 | 2000 | 2500 | 9900 | DN125 | ||
*) Débit d’air se conforme à la norme ISO 1217: 2009, Annexe C: Pression d'admission absolue 1 bar (a), température de refroidissement et d'admission 20 ° C
**) Niveau de bruit est en accord avec la norme ISO 2151 et la norme de base ISO 9614-2, fonctionnement à la pression de fonctionnement maximale et à la vitesse maximale; tolérance: ± 3 dB (A)
***) À déterminer - À discuter
****) W- Refroidissement à eau
